Side Alignment Camera
The side view camera is ideal for testing
micro features such as copper pillars, micro
bumps and TSVs. The system enables a secondary
view point of feature to be tested, providing
accurateand repeatable tests.
The side alignment camera is attached to
the cartridge mount, giving ultra stable,
vibration free, imaging with constant focus
on the tool tip. All camera systems use a
USB connection and can be field retrofitted.
Trinocular Camera
The trinocular camera can be attached
to any stereo zoommicroscope with a C-mount.
With an appropriate microscope, the field
of view can be adjusted from wide to close
up and is ideally suited for macro positioning.
Used in conjunction with the side alignment
camera, the two views (front and side) enable
precise tool alignment, particularly for
small, delicate or difficult samples.
Borescope Imaging System
The borescope provides high magnification
imaging, ideal for precise tool alignment.
Based on medical endoscope technology, it
is perfect for ultra fine pitch devices such
as fine wire bonds or very small geometries
such as micro bumps and copper pillars.
The borescope contains its own light source
and can be positioned in and out of the viewing
position using its precision slide with constant
focus on the test sample.
Download Datasheet
Vision Systems

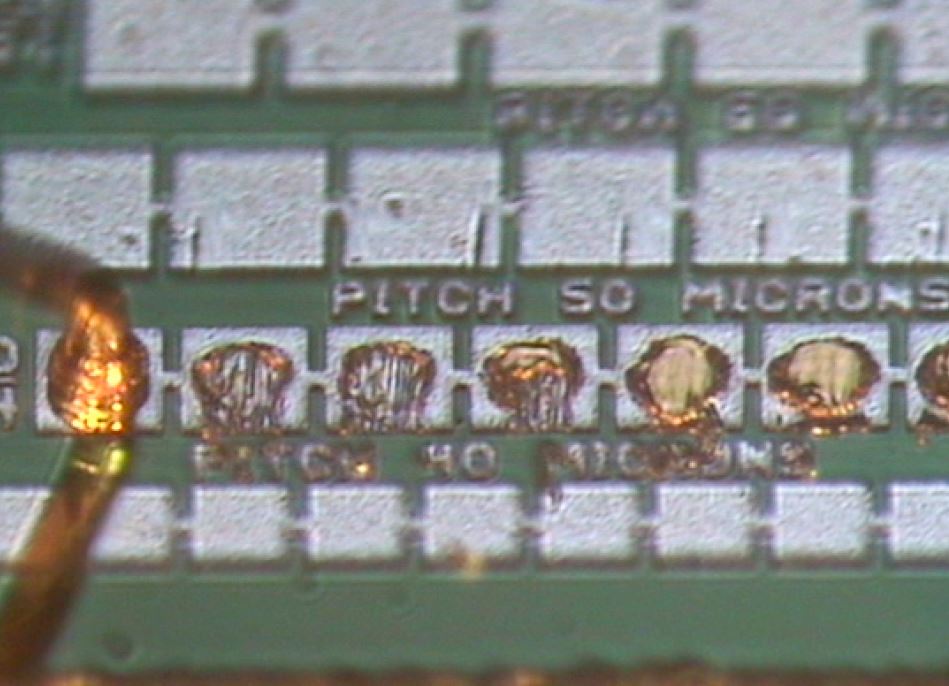

Nordson DAGE offers a range of optical solutions for bondtesting and micro materials testing, featuring imaging systems for failure mode analysis, alignment and live recording of tests.
Image Capture System
The image capture system provides high resolution
images for failure mode analysis and fiducial
alignment. Its close proximity to the tool
maximizes throughput, particularly for automated
tests.
The camera has a built-in light source to
provide optimal illumination and fine focus
is achieved using the precise movement capabilities
of the 4000Plus test platform. A wide range
of objective lenses ensure that the optimal
resolution and depth of field can be achieved
with magnifications up to 1500x.
