Software
System requirements	WinXP or Windows Vista, USB 2.0 Interfaces
General functions	Single shot, videomode load & save images, quicksave
Image data formats	BMP, JPEG, Raw data, TXT
Visualisation	Gray scale or false-color Zoom functions Linear / logarithmic scaling Intensity profiles
Special functions	Distance measurements Remote control of power supply

Specifications

Key Features of the Camera
Model	GE 1024 1024 BI MID
Image size	1024 x 1024 Pixel
Pixel size	13m x 13m
Max. dynamic range	50000:1
AD converter resolution	16bit

Cell Parameter
Substrates	Wafer, c-Si solar cells, thin film substrates, small modules
Dimensions	50mm x 50mm up to 200mm x 200mm

Included System Components
Objective adapter	M42 or F-Mount
Objective	focal distance depend on application large aperature for high optical throughput enhanced NIR transmission
Software	LumiSolarCell software
Synchronisation module	Remote control of power supply
Contact-device	For electroluminescence measurements
HighPower LED light source	For photoluminescence measurements

General Features
Typical exposure times	0.3 sec - 60 sec (depending on size and type of cell or module)
System requirements	Laptop or PC with WinXP or Vista, USB2.0 Interface
Power supply	Standard ~230V, 50/60 Hz
Dimensions of the case (L: W: H)	715mm x 600mm x 1120mm
Weight	70kg

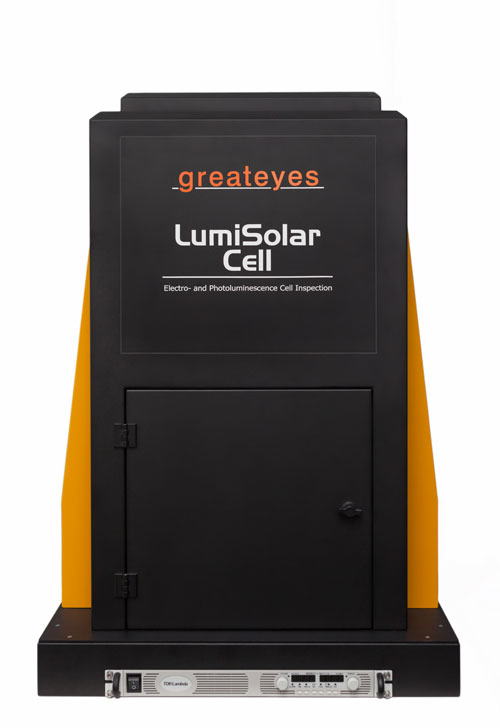

Photoluminescence & Electroluminescence Inspection Equipment for Wafers & Solar Cells

The LumiSolarCell system utilizes the photoluminescence or alternatively the electro- luminescence phenomena to image micro cracks, cell failures and inhomogenities of wafers and solar cells which are extremely difficult to detect visually. The equipment enables performing detailed quality control and it was developed for research and off-line industrial inspection.
The system consists of a highly sensitive CCD-Camera and an innovative HighPower LED light source, developed and manufactured by greateyes. The system is delivered with a complete enclosure and an optional computer system.
