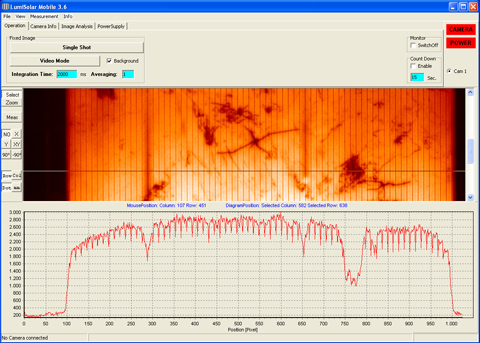

Software |
|
|
System requirements |
WinXP/Vista/Win7, 2 x USB 2.0 Interfaces |
|
General functions |
Single shot, videomode |
|
Image data formats |
BMP, JPEG, raw data, TXT |
|
Visualisation |
Gray scale or false-color |
|
Special functions |
Distance measurements |
|
Battery powered LumiSolarOutdoor System |
|
|
Application |
Electroluminescence inspection of single
modules directly on-site |
|
Module types |
mono-Si, poly-Si, a-Si, CIS, CIGS, CdTe,
HIT |
|
EL images |
1024 x 1024 pixel, 16bit |
|
Resolution |
200m/pixel for solar module with 2m x 1m |
|
Image output data |
bmp, jpeg, raw data or text file |
|
Measurement time |
~2 sec for c-Si solar modules |
|
Min. distance camera ? module |
0.5m |
|
Typ. distance camera ? module |
3m-5m |
|
Outdoor light conditions |
night sky, late twilight time |
|
Module power supply from battery |
max. 100V/7.5A |
|
Number of measurements with single battery
charge |
~ 500 |
|
Total system weight |
40kg |
|
Line-powered LumiSolarOutdoor System |
|
|
Application |
Electroluminescence inspection of complete
strings directly on-site |
|
Module types |
mono-Si, poly-Si, a-Si, CIS, CIGS, CdTe,
HIT |
|
Image size |
1024 x 1024 pixel, 16bit |
|
Resolution |
200m/pixel for solar module with 2m x 1m |
|
Image output data |
bmp, jpeg, raw data or text file |
|
Measurement time |
~2 sec for c-Si solar modules |
|
Min. distance camera ? module |
0.5m |
|
Typ. distance camera ? module |
3m-5m |
|
Outdoor light conditions |
night sky, late twilight time |
|
Power supply for string |
10kW |
|
Number of measurements |
not limited, line powered operation |
|
Total system weight |
65kg |

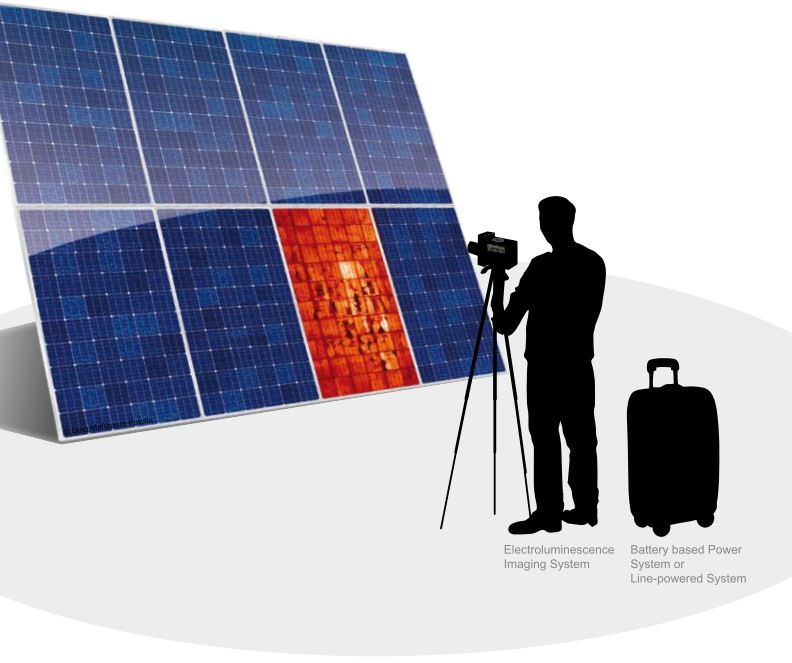

The LumiSolarOutdoor System enables investigation
of the quality of solar modules on-site,
allowing defects to be identified quickly.
The modules do not need to be unmounted from
their superstructure. Measurements can be
performed directly in the solar park or at
the PV installation after twilight or in
the night.
That saves a lot of time and cost, furthermore
transport damages are prevented..
